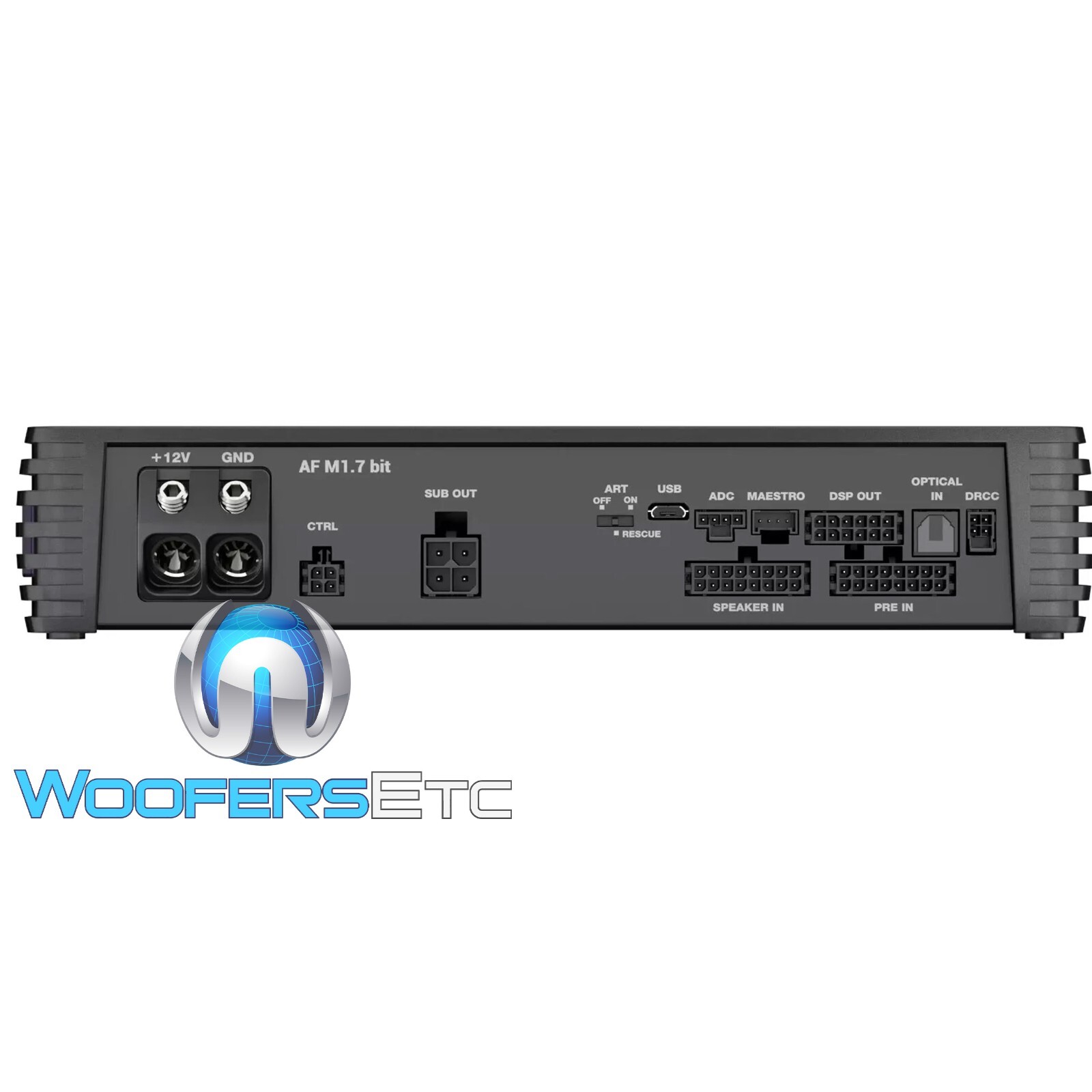

AUDISON FORZA AFM1.7BIT 1200W RMS MONOBLOCK AMPLILFER 7-CHANNEL DSP

Brand New!
AFM1.7BIT - Audison Forza 1200W RMS Monoblock Amplifier 7-Channel DSP

 Features & Specifications:
AF M1.7 bitDSP Amplifier | 1200 W | 7 CH DSP + 1 x 1200 W @ 1 ohm | D-class
The Audison Forza AF M1.7 bit combines a powerful Class-D amplifier with cutting-edge DSP technology. This amplifier delivers 600W RMS at 4Ω, 1000W at 2Ω, and 1200W at 1Ω—matching the proven Forza AF M1D—but adds a powerful 24-bit, 96kHz DSP. The bit Drive software for the AF M1.7 bit includes specific algorithms for optimizing in-car subwoofer performance. The DSP provides equalization, crossover, time delay management, level adjustments, and dynamic loudness. The AF M1.7 bit also features the exclusive “Bass-Magnifier” function, which maximizes low-frequency output in the cabin for an immersive listening experience and realistic dynamic response. It supports 8 input channels and up to 12 using the optional F4IN card with flexible routing and mixing capabilities via the bit Drive software. It includes the Universal Speaker Simulator (USS) circuit for perfect integration with OEM audio systems. The AF M1.7 bit is compatible with the high-resolution Bluetooth receiver B-CON and its B-CON go app for remote control from a smartphone. Compatibility extends to the new DRC MP CAN and DRC AC remote controllers. The AF M1.7 bit is ideal for car audio enthusiasts seeking exceptional sound quality and advanced control features..

Amplifier Tech DataChannels1ClassD-ClassEfficiency84 %Power supply voltage / fuse11 ÷ 15 VDC / 2 x 35AOperating power supply voltage6.5 ÷ 17.5 VDCIdling current1.15 AConsumption @ 14.4 VDC, 2Ω, Max Musical Power65 ARemote IN4 ÷ 15 VDC (1 mA)Remote OUT6.5 ÷ 15 VDC (150 mA)ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers1.5 VDCEfficiency Rated Power84%
 Amplifier StageDistortion - THD @ 1 kHz, 4Ω, 70% Rated Power0,03 %Bandwidth @ -1.5 dB10Hz ÷ 600 HzDamping factor @ 1 kHz, 4Ω, 2 VRMS140S/N ratio (A weighted @ 1 V Input) Master Input105 dBAS/N ratio (A weighted @ 1 V Input) Optical Input105Total Power RMS1200 WMinimum load impedance1ΩOutput Continuous Power (RMS) @14.4 VDC, 1% THD1Ch @ 4Ω: 600 W x 1
1Ch @ 2Ω: 1000 W x 1
1Ch @ 1Ω: 1200 W x 1Adjustable CrossoverYesCEA SpecificationsOutput power @ 4Ω, 1% THD+N, 14.4 V600 WSN ratio (ref. 1W output)81 dBInputs / OutputsPre-In Inputs0.6 ÷ 6 VRMS (15 KΩ Imp.)Digital InputYesPre Outputs6Hi Level Inputs8Low Level Inputs8Speaker-In Inputs2.2 ÷ 22 VRMS (5 Ω Imp.)Digital IN1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O cardDigital Signal ProcessorFilter typeFull / High-Pass / Low-Pass / Band-PassFilter mode and slopeLinkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.Crossover frequency20 Hz ÷ 20 kHzAnalog Input Equalizer (20 ÷ 20k Hz)12 Biquad + DelayTime Alignment Distance0 ÷ 510 cm / 0 ÷ 200.8 inchesTime Alignment Delay0 ÷ 15 msInput Output Real Time Audio MonitorRTAControl ConnectionsDRC PortInput for DRC AC remote control (Optional)ADC PortManage other Audison devices that support this standard1 WireCustomizable functions (+ 12 V activated)2 WireCustomizable functions (+ 12 V activated)General RequirementsPC connectionsMicro USB 1.1 / 2.0 / 3.0 CompatibleSoftware/PC requirementsWindows 10, Windows 11 (min. res. 1024 x 768)Ambient operating temperature range0 °C to 55 °C (32 °F to 131 °F)Size240 x 47 x 156 / 9.44 x 1.85 x 6.14Weight1.95 kgDimensionsDimension A240 mmDimension B156 mmDimension C47 mm
